DF6060-M
HND LASER

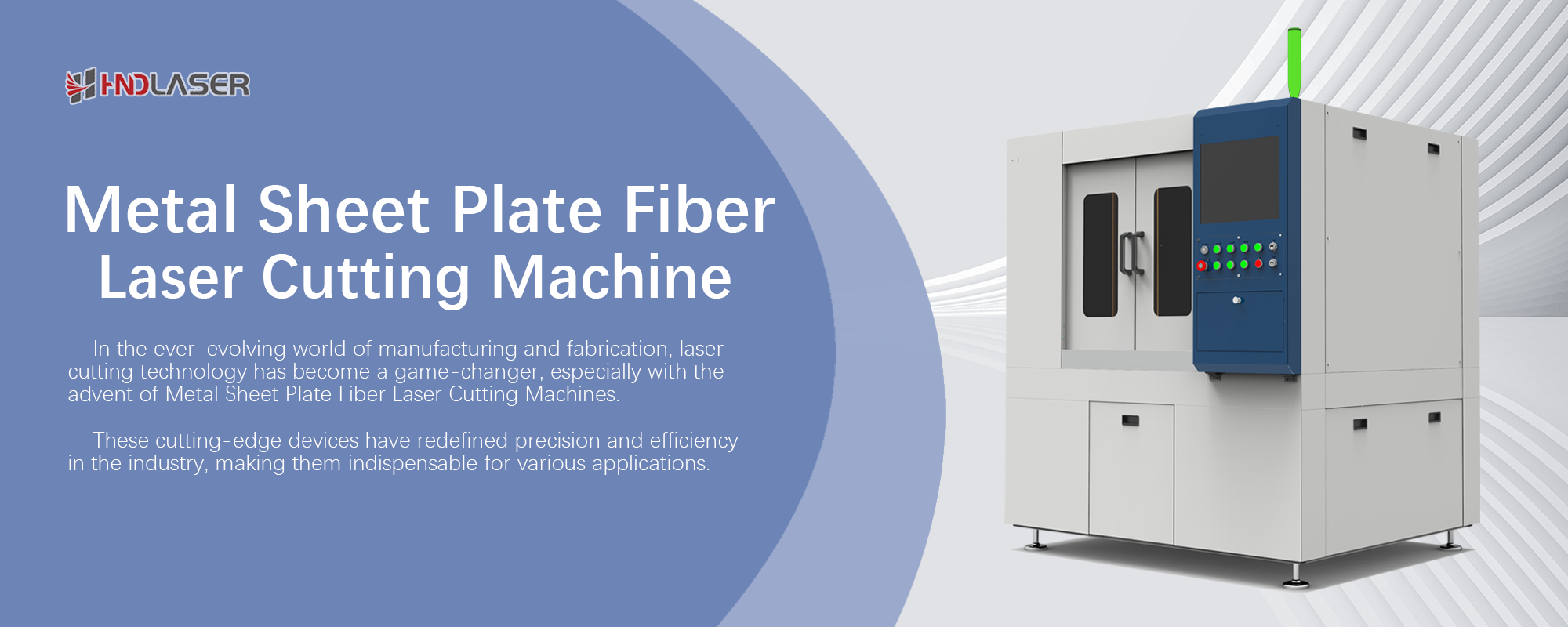

Precision and Accuracy: Metal Sheet Plate Fiber Laser Cutting Machines are renowned for their unparalleled precision and accuracy. These machines utilize advanced fiber laser technology that ensures clean, sharp cuts with minimal material wastage. The precision is especially crucial when dealing with intricate designs and complex patterns.
Versatility: These laser cutting machines are highly versatile and can handle a wide range of materials, with a primary focus on metal sheets and plates. Whether it's stainless steel, aluminum, or other alloys, these machines provide consistent and high-quality cuts across various materials.
Speed and Efficiency: Fiber laser cutting technology enables swift and efficient cutting processes. The machines operate at high speeds, significantly reducing production time and enhancing overall efficiency. This makes them ideal for large-scale manufacturing operations.
Low Maintenance: Metal Sheet Plate Fiber Laser Cutting Machines are designed for minimal maintenance requirements. The solid-state laser sources have a longer lifespan compared to traditional CO2 lasers, resulting in reduced downtime and lower operating costs.
User-Friendly Interface: The control interfaces of these machines are user-friendly, allowing operators to easily program and control the cutting process. Intuitive software ensures that even those new to laser cutting can quickly adapt and produce precise results.
Parameter:
| Model | DF6060-M | DF9090-M |
| Cutting area | 600*600mm | 900*900mm |
| Laser power | 1000/1500/2000/3000/6000W | |
| Max. acceleration | 1.0G | |
| Positioning accuracy | ±20μm | |
| Repeatability | ±5μm | |
| X/Y/Z effective travel | 600/600/100mm | 900/900/100mm |
| X/Y Rapid Travel Speed | 40m/min | |
| Optional | Visual Processing Positioning Technology/Fume extraction/Voltage regulator | |
| Electricity requirements | 380V /50-60Hz | |
| Dimension | 1600*1300*1800mm | 1900*1600*1800mm |
| Weight | 1.0T | 1.8T |
Automotive Industry:
Laser cut metal components are widely used in the automotive industry for manufacturing parts such as chassis, body panels, and intricate components. The precision of laser cutting ensures the production of high-quality, reliable automotive parts.
Aerospace Industry:
In the aerospace sector, where precision is paramount, these laser cutting machines are employed to fabricate components for aircraft and spacecraft. The ability to cut through various metals with precision makes them indispensable in aerospace manufacturing.
Architectural and Decorative Projects:
Laser cut projects have become increasingly popular in architectural and decorative applications. Metal Sheet Plate Fiber Laser Cutting Machines enable the creation of intricate designs for decorative panels, signage, and architectural elements.
Electronic Enclosures:
The electronics industry benefits from the precision of laser cutting for creating intricate electronic enclosures and components. The ability to cut through metal with precision is crucial in ensuring the proper fit and functionality of electronic devices.
