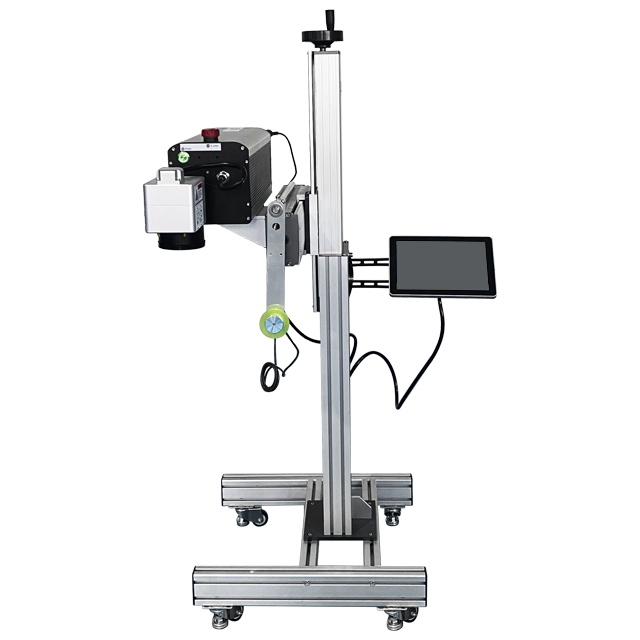

Machine Type: Industrial laser marking machine for production line use
Main Use: Online marking for product ID and traceability in factory production
Typical Marking Content: Serial numbers, dates, batch codes, logos, barcodes, QR codes, and other production data
Laser Type: Pulse fiber laser, 1064 nm
Laser Power: 20W / 30W / 50W / 100W optional depending on configuration
Marking Field: 110×110 mm to 300×300 mm optional depending on configuration
Operation Interface: Touch panel / PC
Typical Line Applications: Cable line, pipe line, hardware production line, electronics line, and other industrial marking systems
In factory production, marking is not only about making text or codes visible. Buyers also need the machine to match line speed, work in a stable way, and keep the mark clear during daily production.
This industrial laser marking machine for production line is made for factories that need permanent and non-contact marking on moving products.
In cable, pipe, packaging, and other factory lines, products often move all the time. In this case, the marking machine should work together with the line instead of becoming a separate manual step.
In many factories, the mark is used for product tracking, batch control, or after-sales checking. So long-term readability is important, not only short-term appearance.
A good sample is not enough for real production. Buyers also need to check installation, signal connection, work distance, product movement, and line speed.
| Common Buyer Question | Answer |
|---|---|
| Can it work on a production line? | Yes, it is made for online marking in factory production. |
| Can it mark permanent product information? | Yes, it can mark serial numbers, dates, logos, barcodes, QR codes, and traceability information. |
| Does it reduce consumable use? | It does not need routine ink or solvent during normal marking work. |
| Is it suitable for different products? | It is often used for metal parts, cables, pipes, and some plastic products, depending on the job. |
| Can the machine be adjusted for different needs? | Yes. Laser power, marking field, and accessories can be selected according to the project. |
The machine has a compact structure. This is useful when the installation space on the line is limited.
Fast response is important when the product is moving. This helps the machine work on continuous production lines.
The control system supports multiple languages. This helps daily use and staff training.
Less Daily Consumable Work
The machine does not need routine ink or solvent during normal marking. This can make daily work easier for the factory.
This is one reason many buyers choose laser marking for production lines.
Suitable for Continuous Work
For factory use, stable daily work is more important than only one good sample. This machine is made for repeated marking work in production.
Actual output depends on line speed, marking content, selected setup, and product material.
| Item | Specification |
| Model Number | HF20XXB |
| Laser Power | 20W / 30W / 50W / 100W optional depending on configuration |
| Laser Level | Class IV (IEC 60825-1) |
| Laser Type | Pulse fiber laser |
| Wavelength | 1064 nm |
| Marking Field | 110×110 mm to 300×300 mm optional depending on configuration |
| Marking Depth | Depends on material and marking need |
| Marking Speed | Depends on application, content, and line condition |
| Marking Line Width | Depends on lens and marking setting |
| Minimum Character Size | Depends on configuration and application |
| Repeat Accuracy | Depends on configuration |
| Cooling Method | Air-cooled |
| Laser Source Expected Life | >100,000 hours |
| Standard User Interface | Touch panel / PC |
| Consumables | No routine ink or solvent during normal marking work |
| Working Temperature | 0–45℃ |
| Power Consumption | 700 W |
| Electrical Requirement | L/N/PE 100–240 VAC, 50/60 Hz |
Note: Final specification should be confirmed according to the selected laser source, field lens, material, marking content, and line requirement.
During production, the product moves on the line or stays at a fixed work point. The system gets the signal and marks the target area with the preset content. This is suitable for online coding, part ID, and traceability marking in factory production.
Based on the current product content and sample images, this machine is often used for metal parts, coated surfaces, cables, pipe products, and some plastic products that need clear marking.
| Material Category | Typical Examples | Note |
|---|---|---|
| Metals | Stainless steel, aluminum, hardware parts, coated metal parts | Often used for product ID, logo, barcode, and traceability marking |

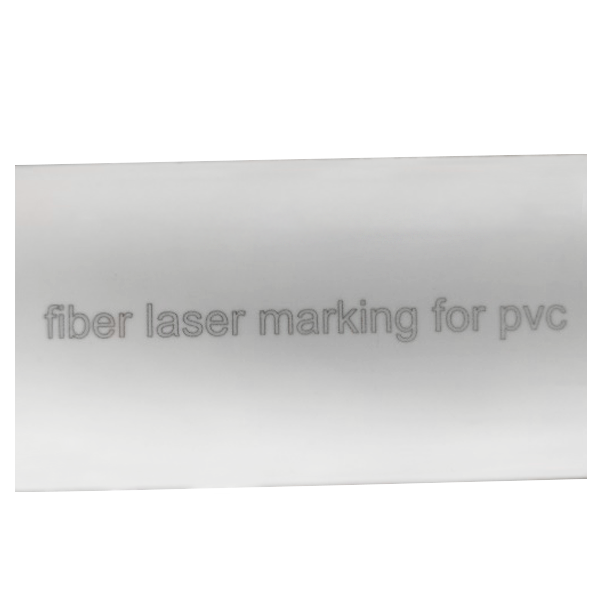

| Cable and Pipe Products | Cable line products, PVC pipe, industrial pipe surfaces | Common for online production-line marking |
| Selected Plastics | Plastic housings, plastic parts, and some engineering plastics | Sample testing is recommended before final confirmation |
Typical uses include hardware parts, chips, tires, cable products, pipe products, aluminum parts, and some plastic products that need clear and lasting marking.
Metal Component
Hardware Part
USB Product
Coated Surface
Optional accessories should be selected according to the production method, installation condition, and marking process.
Electric Lift
Fume Extractor
Foot Switch
Conveyor
It is mainly used for online marking on production lines, such as serial numbers, dates, logos, barcodes, QR codes, and traceability information.
Yes. These are common applications. But the final setup should match product size, speed, marking position, and installation method.
No. It does not need routine ink or solvent during normal marking work.
It depends on the material, marking effect, content, production speed, and line condition. Sample testing is recommended before final confirmation.
It is widely used for metal parts. It can also be used for cables, pipes, and some plastic products depending on the application.
Yes. Sample testing is recommended before order confirmation.
To recommend a suitable machine, please send your material, product size, marking content, required output, and line information.
If possible, please also send product photos, drawings, or sample parts. This helps confirm the laser power, marking field, installation method, and accessories.
Contact HND LASER for quotation, sample marking, and application discussion.
