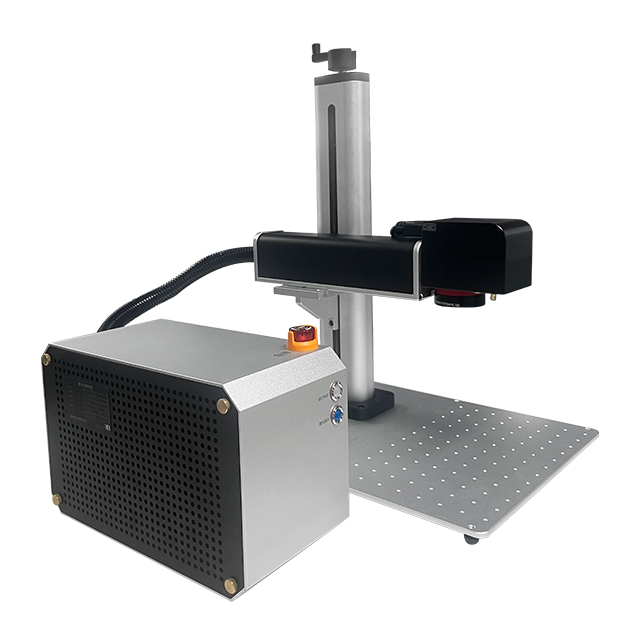

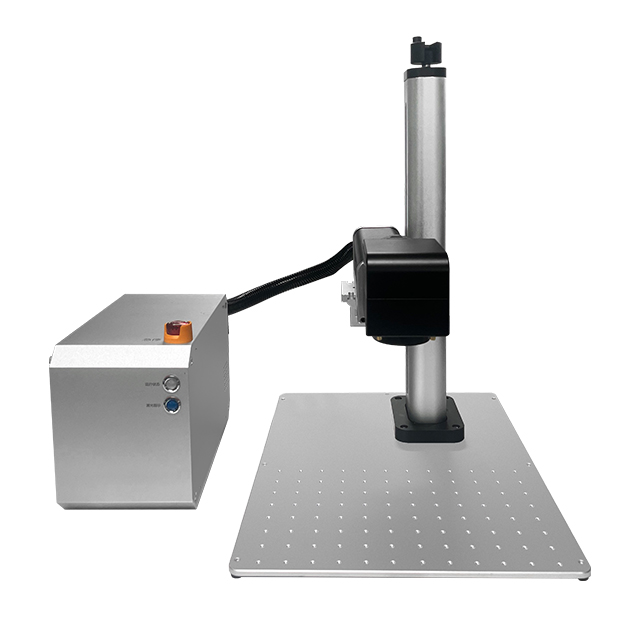

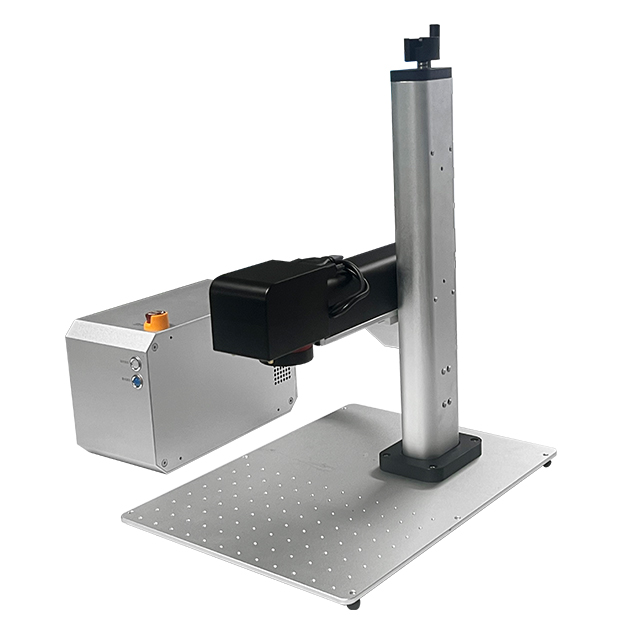

Machine Type: 30W MOPA fiber laser marking machine
Main Use: Color marking on stainless steel, high-contrast marking, dark marking, logos, QR codes, serial numbers, and product identification
Typical Materials: Stainless steel, aluminum, anodized aluminum, titanium, brass, coated metals, selected plastics, and ceramics
Laser Type: Pulse fiber laser
Laser Power: 30W (optional depending on configuration)
Marking Area: 110 × 110 mm to 300 × 300 mm optional
Cooling Method: Air-cooled
Optional Accessories: Electric lift, fume extractor, foot switch, conveyor
The 30W MOPA fiber laser marking machine for color marking is designed for manufacturers that need precise, stable, and visually consistent marking results on metal parts and selected engineering materials.
It is especially suitable for color marking on stainless steel, dark marking on anodized aluminum, and high-contrast marking for product identification, branding, and traceability. In practical production, buyers usually focus on mark quality, repeatability, and material compatibility rather than headline specifications alone.
For buyers comparing standard fiber laser and MOPA laser configurations, the main difference is process flexibility. A MOPA laser source allows better control over pulse settings, which helps improve marking quality on appearance-sensitive parts and supports a wider range of visual effects.
This 30W MOPA laser marking machine is commonly selected for stainless steel color marking, dark marking on anodized aluminum, clear logo marking, barcode and QR code engraving, and other industrial identification work where consistency matters.
Suitable for color marking on stainless steel where decorative appearance, branding, or product differentiation is required.
Useful for thin parts, polished surfaces, coated materials, and detail-sensitive applications where excessive heat may affect appearance.
Supports readable logos, serial numbers, barcodes, and QR codes for industrial coding and product traceability.
| Model Number | HF10XX-A |
| Laser Power | 20W / 30W /60 W(optional) |
| Laser Level | Class IV (IEC 60825-1) |
| Laser Type | Pulse fiber laser |
| Wavelength | 1064 nm |
| Marking Field | 110 × 110 mm to 300 × 300 mm (optional) |
| Marking Depth | ≤0.01 mm |
| Marking Speed | ≤10000 mm/s (optional) |
| Marking Line Width | 0.01–0.2 mm |
| Min Character Size | 0.015 mm |
| Repeat Accuracy | 0.01 mm |
| Cooling Method | Air-cooled |
| Laser Source Life | >100,000 hours |
| User Interface | PC / Laptop |
| Consumables | No |
| Temperature | 0–45℃ |
| Power Consumption | 2000 W |
| Electrical Requirement | L/N/PE 100–240 VAC, 50/60 Hz |
This machine supports a wide range of common industrial materials. Final results depend on material composition, surface finish, and required marking effect.
| Material Category | Material | Typical Suitability |
|---|---|---|
| Metal | Stainless steel | Excellent |
| Metal | Aluminum | Excellent |
| Metal | Anodized aluminum | Excellent |
| Metal | Brass | Excellent |
| Metal | Coated metal | Excellent |
| Metal | Copper | Good |
| Metal | Titanium | Excellent |
| Plastic | PE / PVC / PPR / ABS / Nylon | Depends on application |
| Ceramic | Ceramic / technical ceramic | Depends on application |
The 30W MOPA fiber laser marking machine is suitable for industrial identification, product branding, decorative marking, and traceability applications where mark clarity, durability, and appearance all matter.

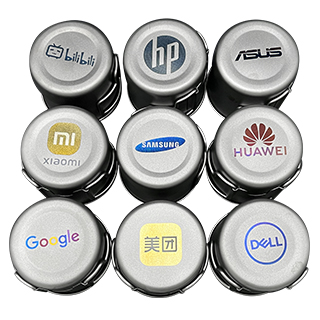

Permanent, high-contrast, ink-free colored marks by controlling the surface oxide layer, more premium and distinctive appearance.
Supports QR codes, serial numbers, and tracking information on motor housings and other industrial components.
Useful for compact assemblies that need readable coding or identification marks in limited space.
Applied to logos, product details, and direct surface identification on metal parts.

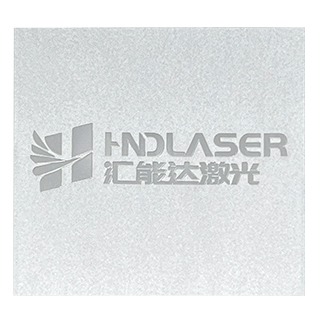

Creates clear and durable marks while maintaining the clean, high-end look of the metal surface.

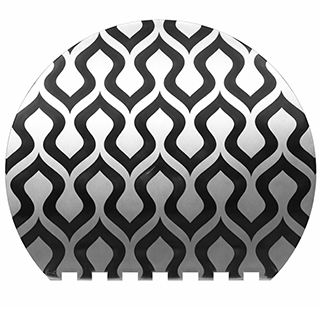

Creates clean and precise marks on a highly reflective surface while keeping the metal looking smooth and premium.
Useful for adjusting working height when products vary in size.
Helps keep the workstation cleaner during routine production.
Convenient for manual loading and repeated marking operations.
Suitable for customers planning semi-automatic or continuous production workflows.
MOPA laser technology offers wider pulse control, which helps improve marking flexibility for color marking on stainless steel, dark marking, fine-detail work, and reduced heat impact on appearance-sensitive surfaces.
No. Color marking is mainly used for stainless steel and certain specific applications. On many other materials, the machine is more commonly used for high-contrast, dark, annealed, or engraved marking rather than full color output.
It can process a wide range of materials including stainless steel, aluminum, anodized aluminum, titanium, brass, coated metals, selected plastics such as ABS, PVC, PE, and certain ceramic materials depending on the application.
Yes. Laser marking is generally used for permanent identification, branding, and traceability. The durability of the mark depends on the material and the selected marking method.
No routine consumables are required for normal marking operation. The air-cooled structure and fiber laser source also help reduce daily maintenance requirements.
It is commonly used in electronics, hardware, tools, jewelry, customized metal products, industrial coding, and other applications where mark clarity, appearance, and repeatability are important.
