Deep Laser Engraving: Complete Guide To High-Detail And 3D Relief Effects

Introduction

Deep laser engraving has emerged as one of the most sought-after and rapidly advancing technologies in industrial metal processing. Unlike surface marking, it removes material layer by layer to create durable, high-contrast, and permanent results. Whether you work in mold manufacturing, tool production, jewelry engraving, or industrial nameplate marking, selecting the right 3D laser engraving system is essential for achieving high-definition and relief effects. This guide explains how deep laser engraving works, which parameters matter most, what industries use it, and how to choose the best 3D laser engraving machine for your production needs.

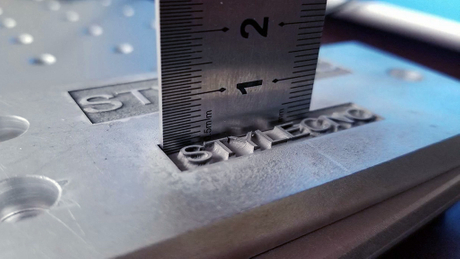

What Is Deep Laser Engraving?

Deep laser engraving is a laser processing technique that gets rid of cloth to create measurable intensity. Unlike fashionable laser marking, which handiest modifications floor shadeation or oxidation, deep engraving bodily ablates metallic to create everlasting grooves. Typical deep engraving programs include: Deep engraving on metallic molds；3D alleviation engraving；Industrial identity plates；Tool metallic branding；Jewelry and treasured metallic engraving The intensity accomplished relies upon on laser power, cloth type, and engraving parameters.

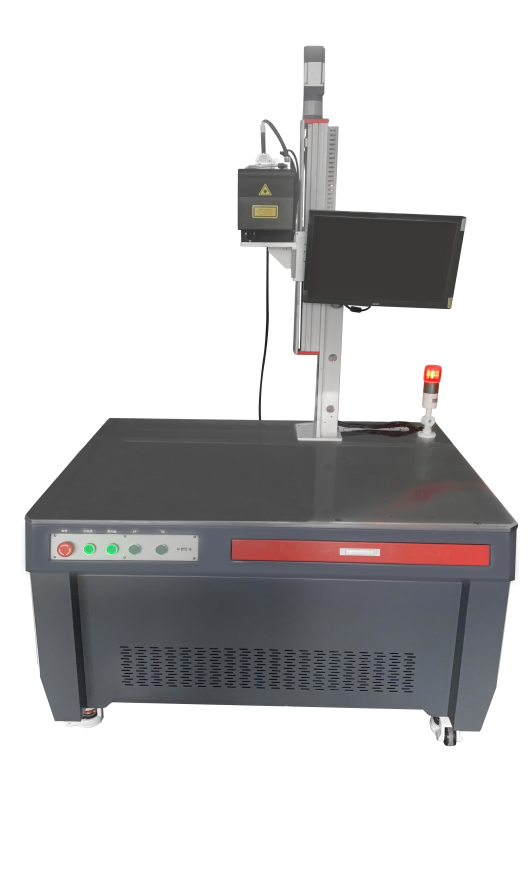

How Does a 3D Laser Engraving3 Machine Work?

A expert 3D laser engraving system makes use of a pulse fiber laser supply working at 1064 nm wavelength. This wavelength is good for metallic processing because of excessive absorption efficiency.

Deep engraving is accomplished via multi-byskip scanning. Each byskip gets rid of a skinny cloth layer till the favored intensity is reached.

Key Techniques for High-Detail Deep Laser Engraving

1. Engraving in multiple passes

Deep laser engraving needs multiple passes instead of just one strong cut. This makes the floor better and helps reduce heat stress.

2. Optimization of Power and Frequency

Increased energy speeds up the removal of cloth. For deeply engraving metal, using a lower frequency raises the top energy. For instance, first-class element engraving requires 30 to 50W, medium-strength tasks require 100W, and commercial mold deep engraving requires 200W.

3. 3D Dynamic Focus Control

A 3D laser engraving machine, in contrast to flat engraving machines, shifts focus as it passes over curved surfaces. The following marking fields are available: 100/150/200/300/400/500/600 mm. Even on challenging molds, this guarantees constant strength.

4. Line Width Control and Hatch Spacing

With line width as first-class as 0.01 mm, unique textures and remedy styles come to be possible.

Proper hatch spacing guarantees:Smooth floor finish、Uniform cloth elimination、Accurate 3-d remedy intensity

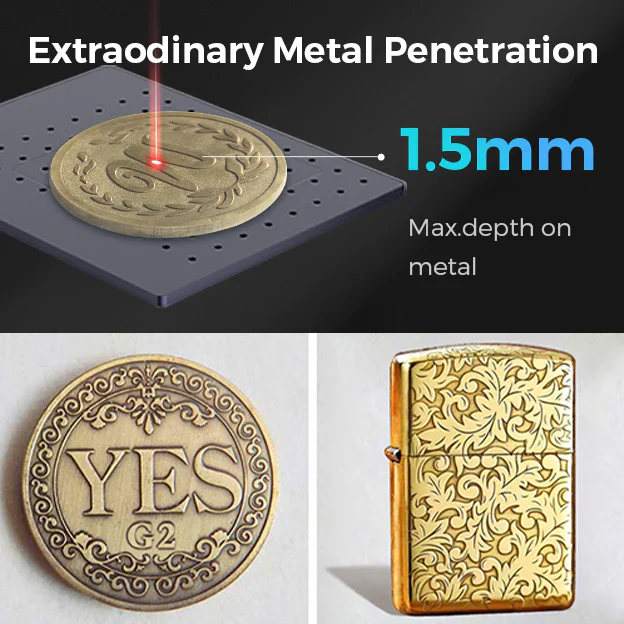

Creating 3D Relief Effects

3D laser engraving converts grayscale designs into intensity variations. Darker regions acquire extra laser passes, developing deeper grooves. This method is extensively used for: Mold hollow space textures、Embossed logos、Decorative steel plates、Gold and silver jewelry Because repeat accuracy reaches 0.01 mm, the relaxation shape stays sharp and consistent.

Best Materials for Deep Laser Engraving

Deep laser engraving works nice on metals such as: Carbon steel、Stainless steel、Aluminum、Brass、Tool steel、Gold and silver Pulse fiber lasers at 1064 nm offer incredible overall performance on those materials.

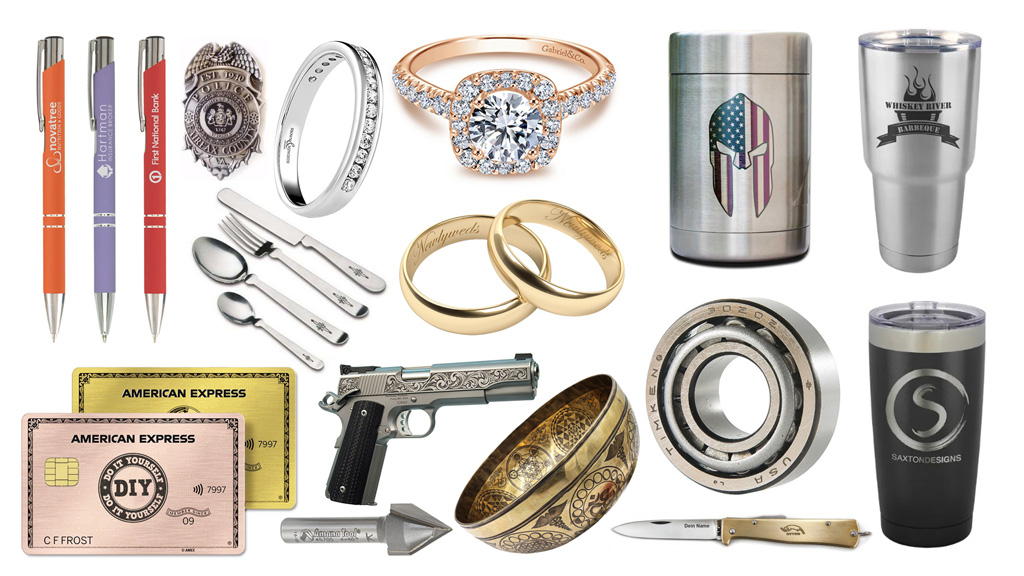

Industrial Applications of 3D Laser Engraving Machines

1.Mold Manufacturing

Deep laser engraving is important for mildew texturing and repair. It permits localized processing with out getting rid of the mould from manufacturing lines.

2.Jewelry Industry

Precise deep engraving matches the ornamental features while keeping the structure strong.

3.Tool and Die Industry

Permanent deep marks ensure traceability and durability in tough environments.

4.Industrial Nameplates

Deep steel plates with engraved surfaces are placed facing up to protect against wear, rust, and chemicals.

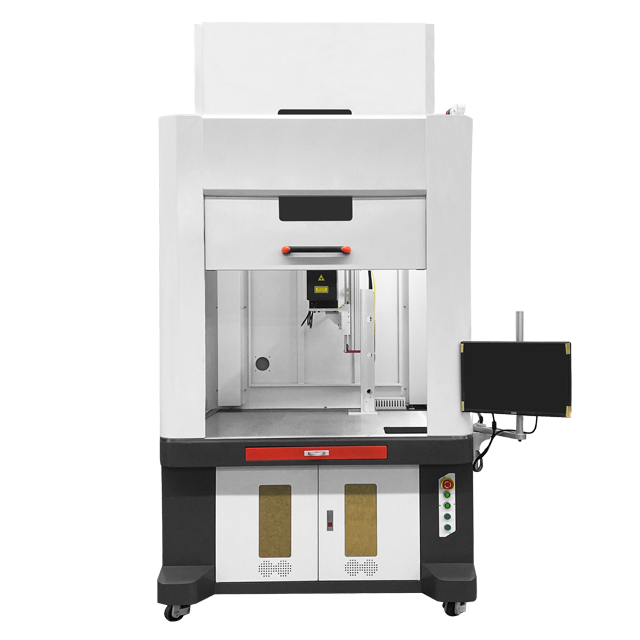

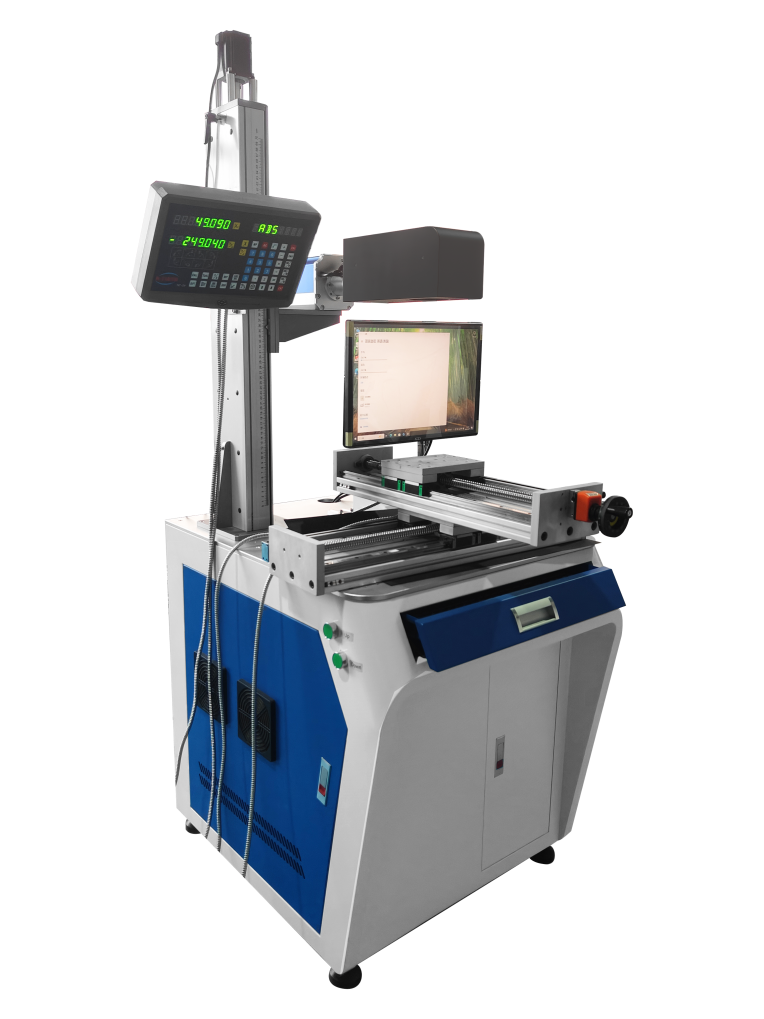

How to Choose the Right 3D Laser Engraving Machine

When choosing a deep laser engraving machine, consider: Required engraving depth、Production speed、Material type、Marking discipline size、Cooling method Air-cooled structures are appropriate for widespread use. Water-cooled structures are endorsed for high-energy 200W business models. Electrical requirement: 100–240 VAC, 50/60 Hz Operating temperature: 0–45°C

FAQ Section

Q：How deep can a fiber laser engrave metal?

A：High-energy fiber lasers can gain considerable intensity via multi-byskip engraving relying on cloth type.

Q：What energy is fine for deep laser engraving?

A：100W and 200W fiber lasers are usually used for commercial deep engraving applications.

Q：Is deep laser engraving permanent?

A：Yes. Since cloth is removed, the engraving is enormously long lasting and proof against wear.

Q：What industries use 3D laser engraving machines?

A：Mold manufacturing, rings production, tooling, car parts, and commercial branding.

Conclusion

Deep laser engraving is a effective answer for industries requiring durability, precision, and 3D alleviation effects. A expert 3-D laser engraving system with pulse fiber technology, excessive repeat accuracy, and multi-energy alternatives affords flexibility for numerous applications. These modern systems offer energy settings from 30W up to 200W, can mark areas as large as six hundred millimeters, and have a laser life that lasts more than a hundred thousand hours, providing both good performance and lasting reliability.
