Fiber and UV Laser Marking Test on Animal Ear Tags

Introduction: Laser Marking for Modern Animal Identification

Animal ear tags are widely used for livestock identification, farm management, and traceability systems.

With increasing requirements for digital identification, manufacturers need reliable marking technologies that can process:

• Identification numbers

• QR codes

• Barcodes

• Logos

• Traceability information

Traditionally, many manufacturers have used an Ear Tag Printing Machine to apply identification information through ink printing or other printing methods.

However, as requirements for permanent identification, digital traceability, and automated production increase, laser technology has become an alternative solution for animal identification products.

This application test evaluates how Fiber Laser Marking Machine and UV Laser Marking Machine perform on plastic animal ear tags.

Test Workpiece

Test Item Information

Test Item Information: Plastic Animal Ear Tag

Application: Livestock Identification

Material: HDPE/TPU

Surface: Colored Plastic Surface

Marking Content:

• Identification Number

• Logo

• QR Code

 Product Information

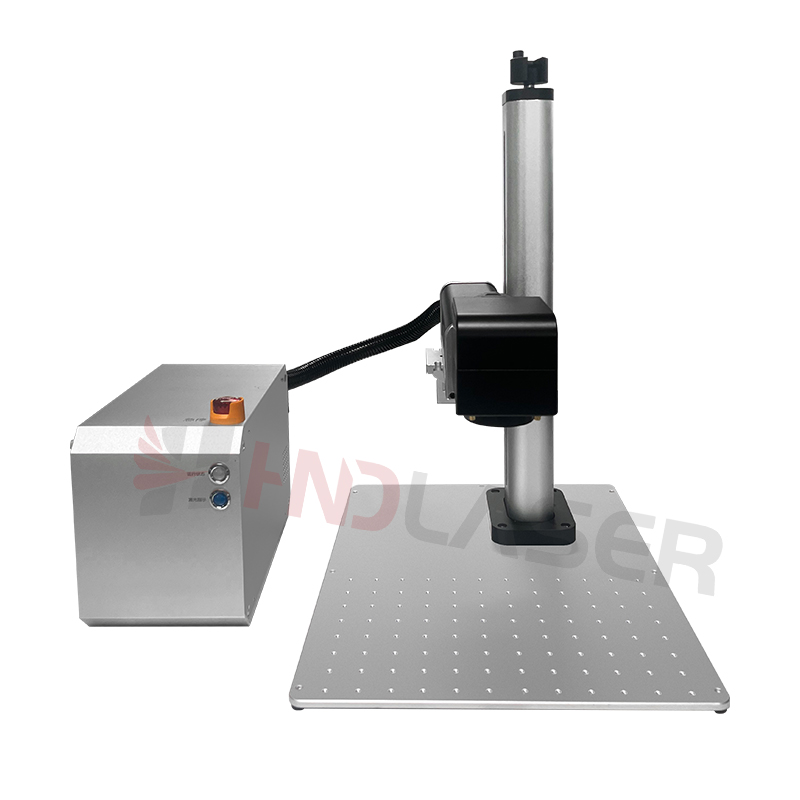

product Information: Fiber Laser marking machine

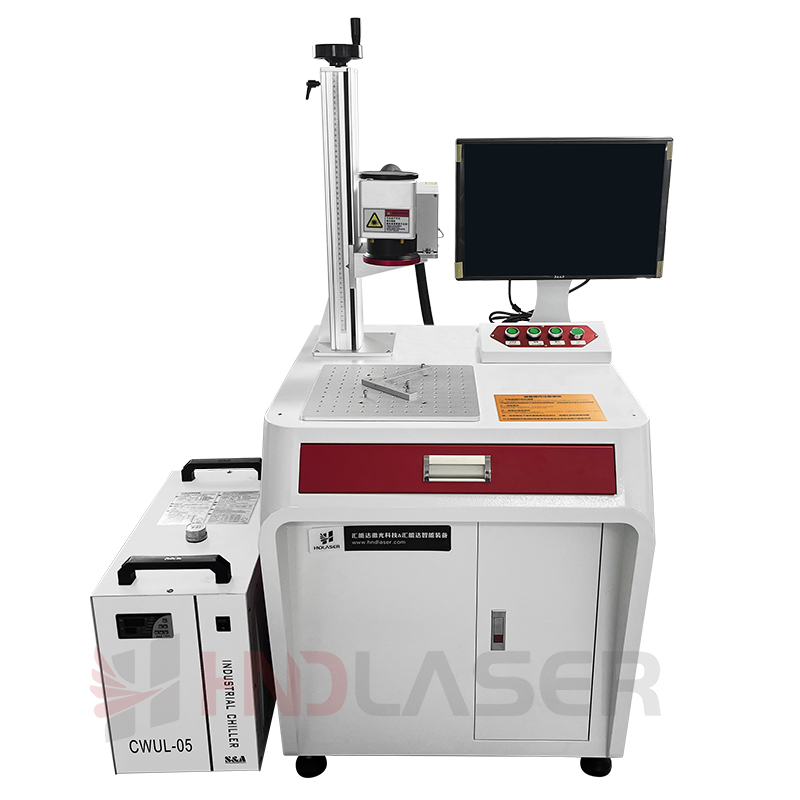

product Information: UV Laser marking machine

Testing Objectives

This Animal Ear Tag Laser Marking test was designed to evaluate not only marking appearance but also practical production requirements.

The evaluation focused on:

• Can laser marking create clear identification marks on plastic ear tags?

• Can QR codes maintain good readability?

• How do Fiber and UV laser technologies perform differently?

• Can the process support automated production?

Fiber Laser Marking Test on Animal Ear Tags

A Fiber Laser Marking Machine was tested on plastic animal ear tags to evaluate marking contrast, processing stability, and overall appearance.

The test showed that fiber laser technology can provide effective marking performance on suitable plastic materials.

It is suitable for applications requiring:

• Identification numbers

• Logos

• Basic traceability information

UV Laser Marking Test on Animal Ear Tags

A UV Laser Marking Machine was also tested to evaluate fine marking capability, QR code processing, and surface appearance.

The UV laser demonstrated advantages in applications requiring:

• High Precision Laser Marking

• Fine details

• Small QR codes

The test results showed clear marking edges and stable identification performance.

Fiber and UV Laser Marking Comparison

Comparing Real Marking Results on Plastic Animal Ear Tags

Before selecting a laser marking solution, many manufacturers want to understand how different laser technologies perform on the same plastic animal ear tag.

The following comparison is based on actual marking samples produced using both a Fiber Laser Marking Machine and a UV Laser Marking Machine. Rather than identifying one technology as universally better, the comparison highlights the different marking characteristics that each technology can provide for various production requirements.

Whether the priority is QR Code Laser Marking, high precision laser marking, or efficient identification marking, selecting the appropriate laser technology should always be based on the material, marking content, and production process.

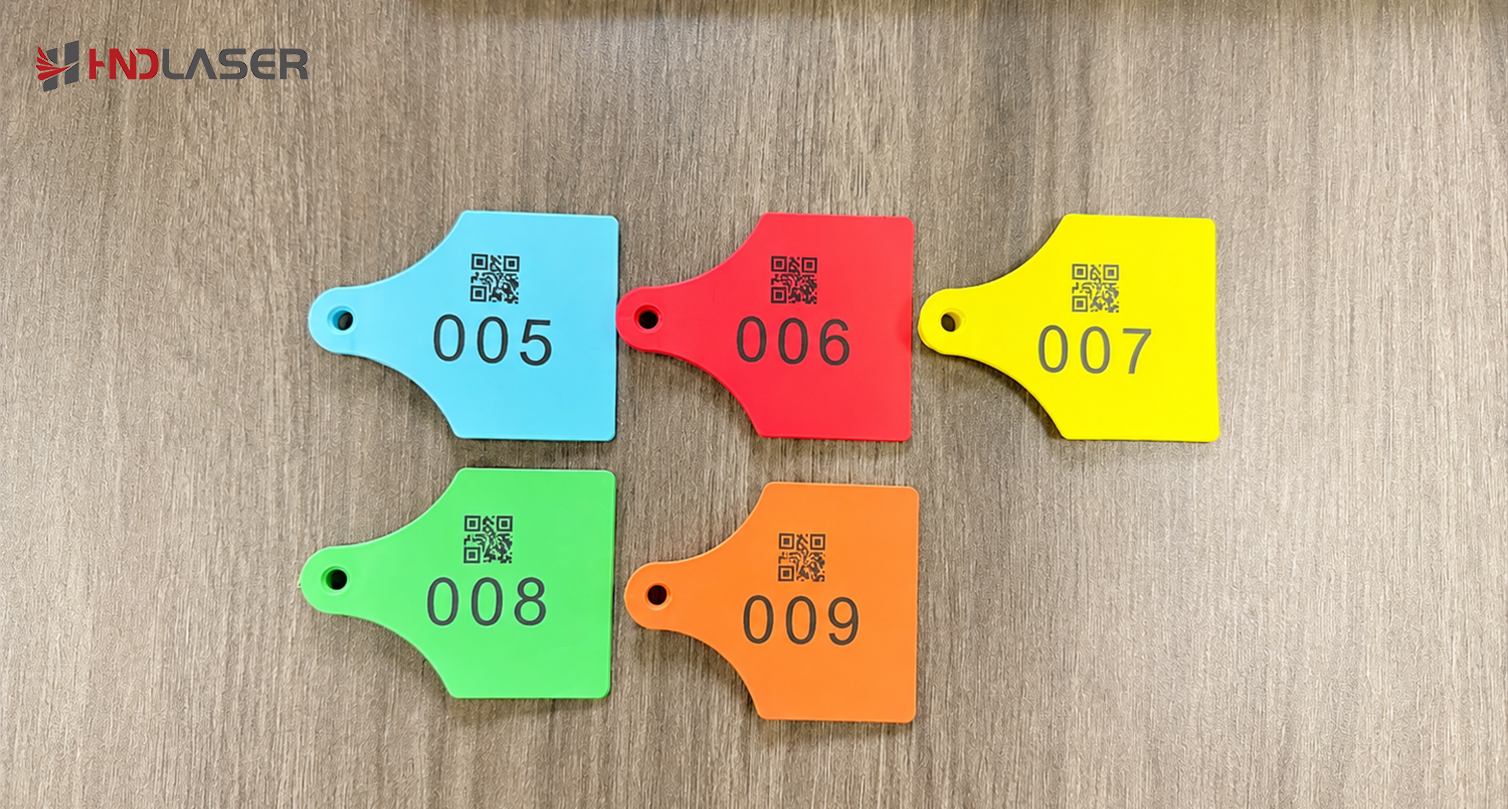

Fiber Laser Marking Result

A real marking sample produced on a plastic animal ear tag using a Fiber Laser Marking Machine.

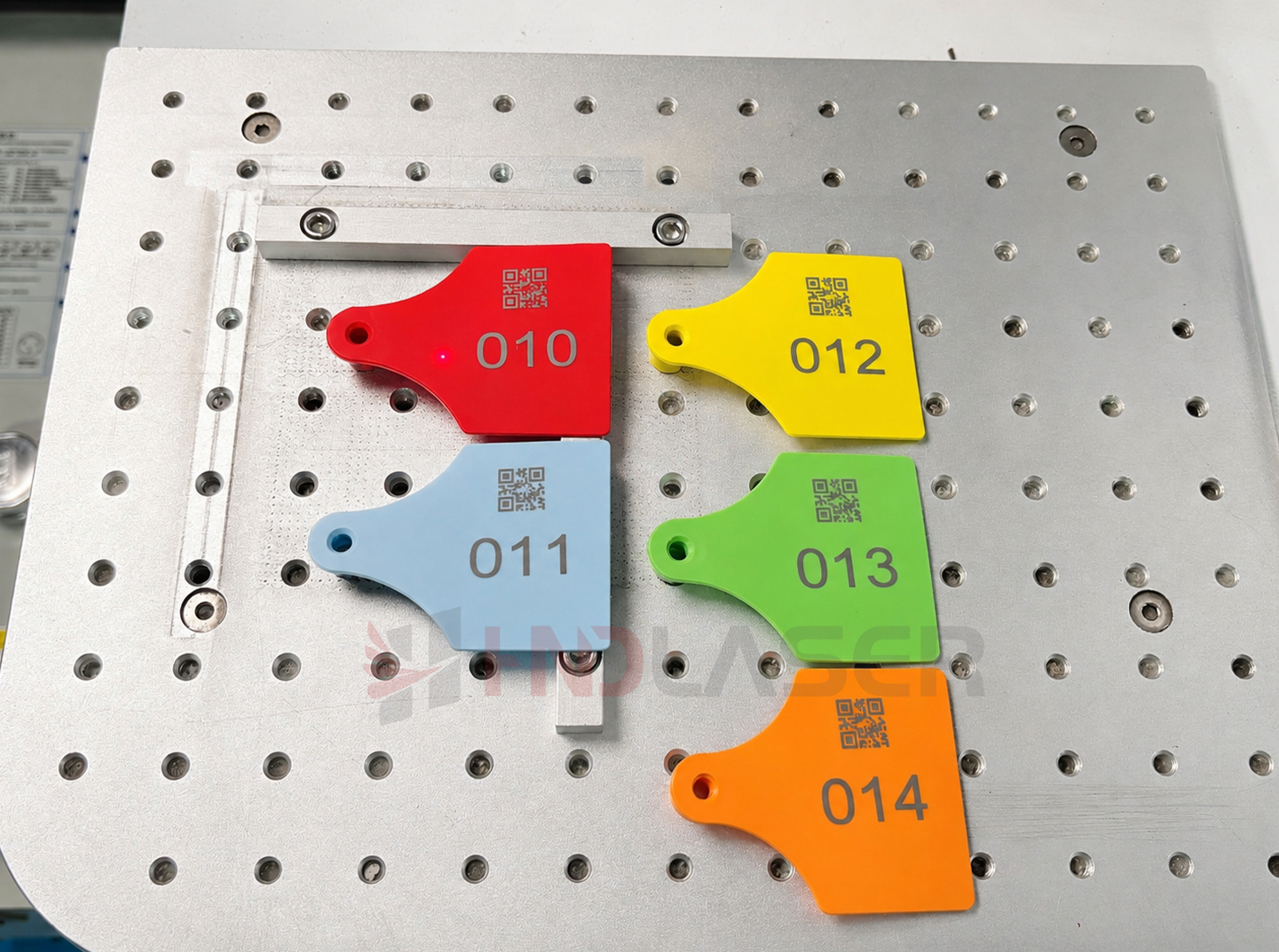

UV Laser Marking Result

A real marking sample produced on a plastic animal ear tag using a UV Laser Marking Machine.

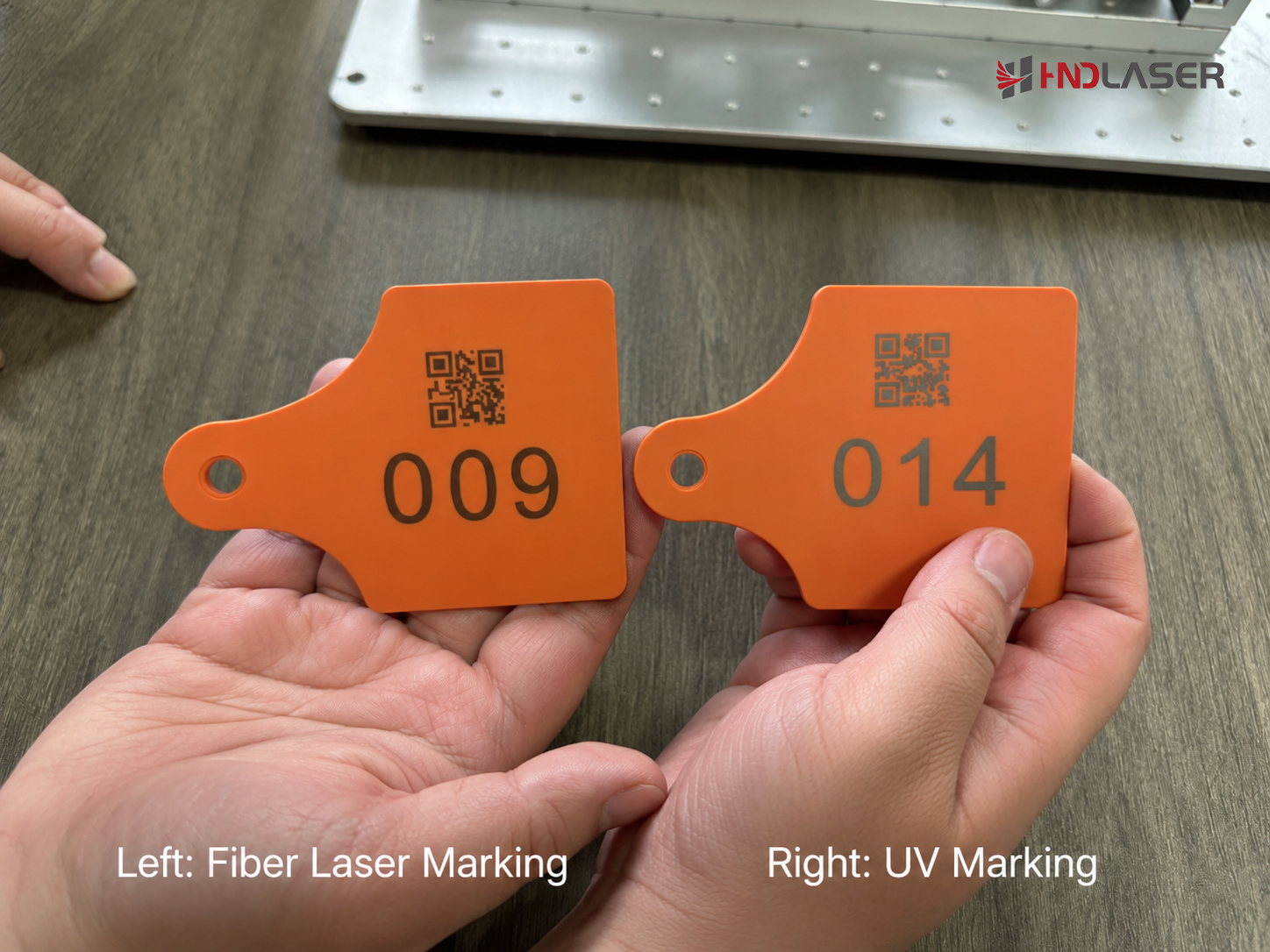

Visual Comparison

1. Visual Comparison – Fiber vs. UV Laser Marking on Animal Ear Tags

Higher Contrast for Everyday Production

The first difference becomes obvious even without magnification. During Animal Ear Tag Laser Marking, a Fiber Laser Marking Machine produces darker, higher-contrast characters and QR codes on most laser-markable livestock ear tags. The engraved information is easier to identify by operators during production and remains highly visible throughout daily farm use.

A UV Laser Marking Machine, on the other hand, creates cleaner and lighter gray markings. Although the contrast is usually lower than fiber laser marking, the overall appearance is more refined, making UV marking suitable for applications that prioritize cosmetic quality or extremely fine details.

For standard livestock ear tag production, where serial numbers, logos, and regular QR codes are required, Fiber Laser Marking offers an excellent balance between visibility, production speed, and equipment investment.

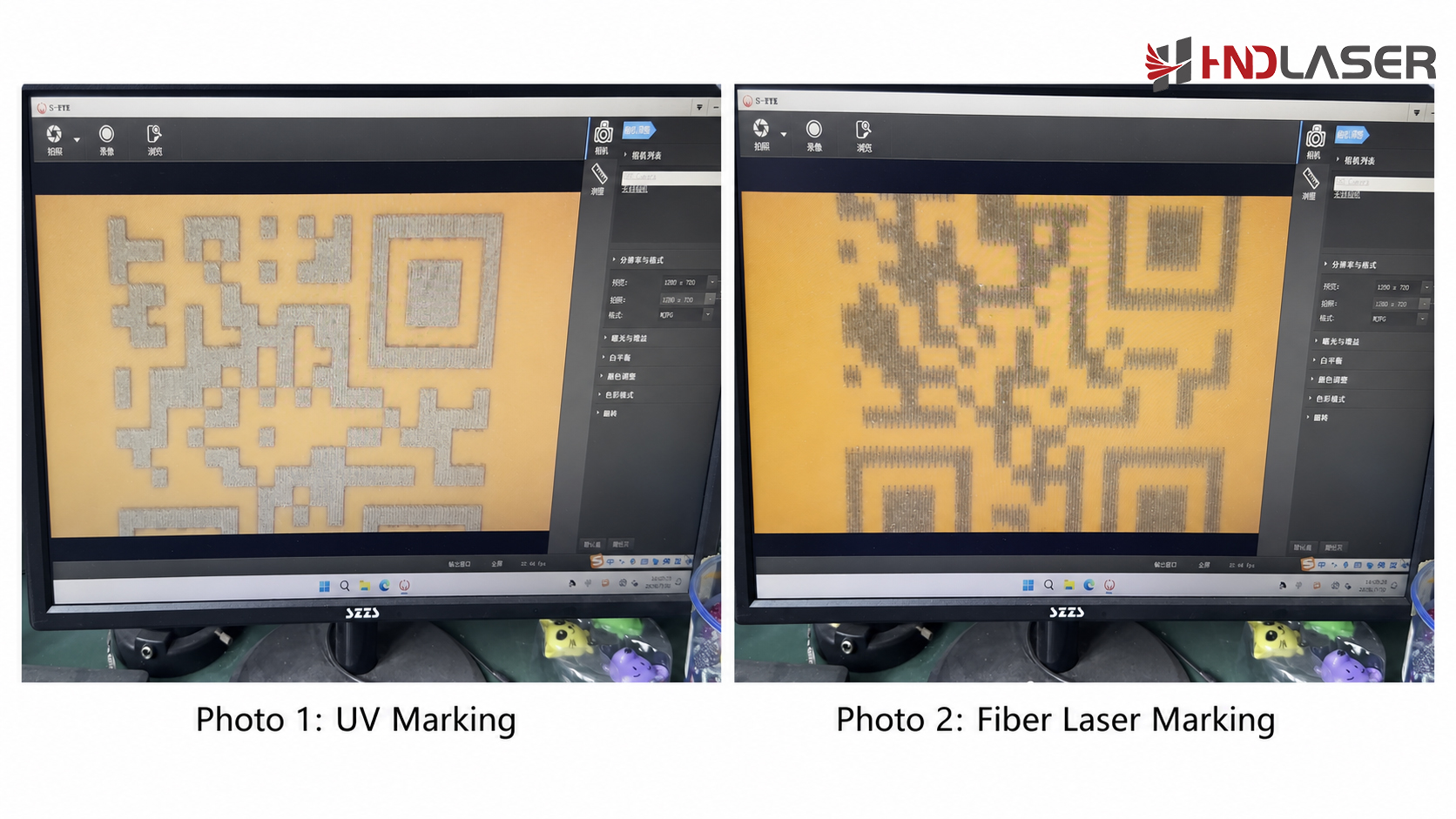

2. Microscopic Comparison – Edge Quality and Surface Interaction

Different Surface Characteristics Under Magnification

Under microscopic inspection, the difference between the two laser technologies becomes more apparent.

A Fiber Laser Marking Machine generates stronger interaction with the ear tag surface. As a result, the marking edges may appear slightly rougher under high magnification, and the engraved area usually exhibits a deeper surface texture. This stronger material interaction is also the reason why fiber laser marking often achieves higher visual contrast.

A UV Laser Marking Machine produces smoother marking boundaries with finer edge definition. The surface remains more uniform after marking, and the affected area is generally smaller. These characteristics make UV laser marking particularly suitable for applications requiring extremely fine graphics or premium surface quality.

For most Animal Ear Tag Production Line projects, however, the microscopic difference has little impact on normal identification or daily use. Standard serial numbers, logos, and conventional QR codes remain clearly readable with both technologies.

3. QR Code Verification – Reading Performance in Real Production

Selecting the Right Technology Based on QR Code Size

For standard QR Code Laser Marking used in livestock management, both Fiber Laser Marking Machine and UV Laser Marking Machine provide reliable scanning performance when the QR code size meets normal production specifications.

As the QR code becomes significantly smaller or contains a higher data density, UV laser marking demonstrates a greater advantage. The finer marking edges help maintain the integrity of each QR code module, resulting in higher first-pass scanning reliability.

Fiber laser marking remains the preferred solution for most manufacturers because it combines lower equipment cost, higher production efficiency, and excellent readability for standard-sized QR codes. Only applications requiring ultra-small codes or premium traceability standards generally benefit from choosing UV laser technology.

This is why many manufacturers select Fiber Laser Marking Machines for mainstream Animal Ear Tag Production Lines, while reserving UV Laser Marking Machines for specialized identification projects.

Conclusion

Both Fiber Laser Marking Machine and UV Laser Marking Machine can be used for Animal Ear Tag Laser Marking on HDPE/TPU, but they produce different marking characteristics.

In this comparison, the Fiber Laser Marking Machine produced a darker marking, while the UV Laser Marking Machine generated a lighter and more uniform result. For QR codes and barcodes, darker marking is not always better. Excessive thermal reaction may affect code readability, whereas UV laser marking generally provides cleaner edges and more consistent code quality on many HDPE/TPU materials due to its higher material absorption.

Although Fiber Laser Marking Machine is primarily designed for metal marking, it can also mark certain HDPE/TPU after material verification and parameter optimization. For budget-sensitive projects, fiber laser remains a practical choice. For manufacturers seeking stable QR code marking, fine graphics, and consistent production quality, UV Laser Marking Machine is generally the preferred solution.

Automated Animal Ear Tag Production Integration

Both Fiber Laser Marking Machine and UV Laser Marking Machine can be successfully integrated into automated Animal Ear Tag Laser Marking production lines. With automatic feeding, positioning, laser marking, vision inspection, and data management systems, both technologies can support continuous and efficient manufacturing.

The choice between the two technologies should not be based solely on automation capability, as both are well suited for production line integration. Instead, manufacturers should refer to the marking results demonstrated in the previous comparison.

For applications mainly involving identification numbers, letters, or larger graphics, a Fiber Laser Marking Machine can provide a cost-effective solution after proper material testing and parameter optimization. For production requiring stable QR Code Laser Marking, fine graphics, and consistent marking quality across different HDPE/TPU formulations, a UV Laser Marking Machine is generally the preferred option.

Selecting the appropriate laser technology based on the ear tag material and marking requirements helps ensure reliable production performance while meeting long-term traceability objectives.

Beyond Animal Ear Tags: Pet Identification Applications

Although this application focuses on livestock ear tags, the same laser marking technology can also be applied to pet identification products.

For example, manufacturers producing pet identification tags can use similar processes for creating:

• Pet name tags

• Metal pet tags

• QR code identification tags

This makes laser technology a flexible solution not only for livestock identification but also for applications related to dog tag machine production.

Application Conclusion

This practical test demonstrates that both Fiber Laser Marking Machine and UV Laser Marking Machine can provide effective solutions for animal ear tag identification applications.

The suitable technology depends on:

• Material characteristics

• Marking requirements

• QR code requirements

• Production speed

• Automation level

For manufacturers comparing an Ear Tag Printing Machine with laser technology, laser marking provides a durable and flexible option for permanent identification and digital traceability.

The same technology can also be extended to pet identification products, including customized pet tags and applications requiring a dog tag machine.
